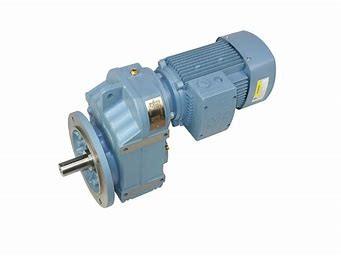

Helical Bevel Reducer Gear High Power Reductor Gearbox
Features:
| 1. Gear is made of high strength low carbon alloy steel by
carburizing and quenching. The hardness of tooth surface can reach
HRC58-62. CNC grinding technology is adopted for all gears, with
high precision and good contact performance |
| 2. high transmission efficiency: single stage over 96.5%; double
stage over 93%; three stage over 90%; |
| 3. stable operation and low noise; |
| 4, compact structure, light weight, long service life and high
bearing capacity; |
| 5. easy to disassemble, check and assemble. |
We are offerings series helical-worm geared motor
- output speed(r/min): 0.04-349
- output torque (n.m): top to 6500 motor
- power (kW): 0.12-22 -
- structures: foot-mounted, flange-mounted, with or without motor,
shaft-input type for sprocket or pulley;
- transmission ratio: fine division, wide scope, and may combine
different series to get larger ratio;
- the box body is made of high-strength cast iron. Gear and gear
shaft adapts the gas carbonization, quenching and fine grinding
process, therefore the bearing capacity of unit volume is high.
- high efficiency up to 98%per stage, low noise
| Gear type | Helical Gear |
| Gear & Gear Shaft Material | 20 CrMnTi |
| Gear hardness | HRC58~62 |
| Solid & Hollow shaft material | 42CrMo |
| Housing material | HT250 High-strength Cast Iron |
| Gear precision | DIN6 |
| Bearing | C&U ,HRB ,NSK, LYC ,ZWZ |
| Oil Seal | NAK Brand VITON or NBR |
| Warranty | 1 Year |
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined
hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series,
UDL Series)R K S F helical gear motor
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing,
export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc.
Especially ESCROW, which is guaranteed by Alibaba.com. It is safe
and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality
problem, please send us pictures or video to check, we promise to
send spare parts or new products to replace. Our guarantee not
include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical
gearbox) as well as requirement details, such as motor power,
output speed or ratio, service factor or your application...as much
data as possible. If you can supply some pictures or drawings, it
is nice.
